KODI KD-DW-1 Lab Low Temperature Spray Dryer

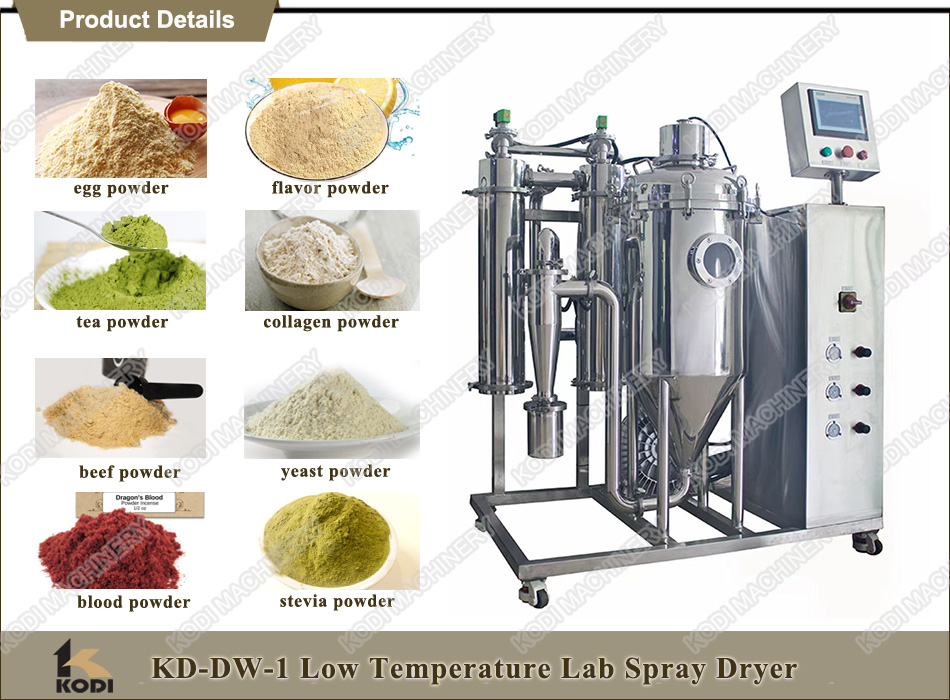

KD-DW-1 Low Temperature Spray Dryer Machine

KODI KD-DW-1 Low Temperature Spray Dryer is specially designed for the drying of heat-sensitive materials (such as biological products, active ingredients, sugar-containing traditional herb extracts, etc.). Through the low-temperature and short-time drying technology, it avoids the destruction of material activity caused by high temperatures, and is widely used in powder preparation in fields such as biomedicine, food, and new material research.

Application of KD-DW-1 Low Temperature Spray Dryer Machine
KD-DW-1 Low Temperature Spray Dryer is mainly used for producing micro-powder particles in universities, research institutes, food, medicine, chemical, enterprises, and laboratories. It has broad applicability for solutions such as emulsions and suspensions. It is suitable for drying heat-sensitive substances such as biological products, biological pesticides, and enzyme preparations. Because the material sprayed out only undergoes drying when it becomes fine mist droplets, it is only rapidly heated, thus ensuring that the active components of these active materials remain undamaged after drying. This KD-DW-1 Low Temperature spray dryer can achieve low-temperature atomization drying at normal temperatures.



Specification

Model

KD-DW-1

KD-DW-3

KD-DW-5

Water Evaporation

0.8kg/h

3kg/h

5kg/h

Sample feeding capacity

50ml

80ml

80ml

Diameter of drying chamber

300mm

800mm

900mm

Height of drying chamber

500mm

1200mm

1500mm

Cooling water circulating system

Built-in low-temperature cooling circulation pump

Atomization system

Low temperature atomizing system

Inlet air temperature

100

Drying temperature

35-100


Packing and Delivery of KODI KD-DW-1 Lab Low Temperature Spray Dryer

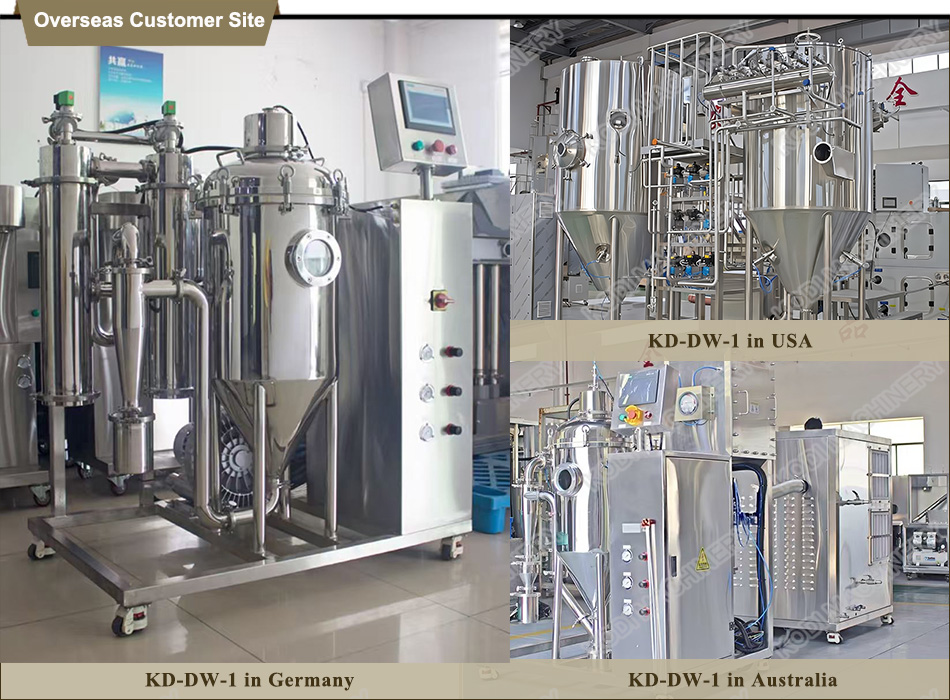

Successful Experience Overseas of KD-DW-1 Low Temperature Spray Dryer Machine
KD-DW-1 Low Temperature Spray Dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service .
