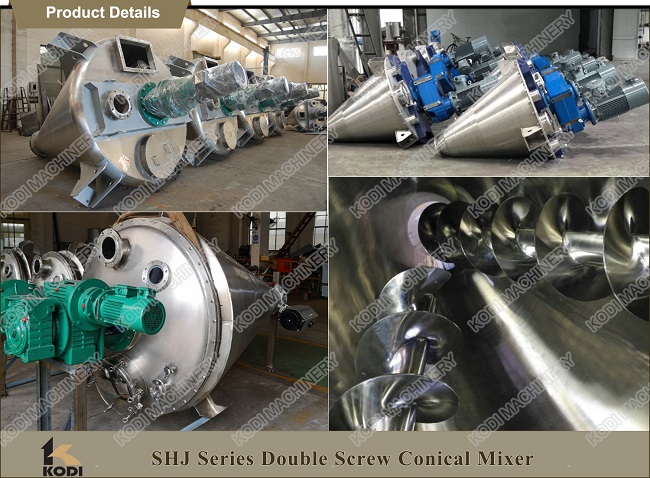

KODI Large-scale Double Screw Vertical Cone Dry Powder Nauta Mixer




Description of Industrial Double Screw Cone Mixer

This mixer is a new type of high-efficiency, high-precision mixing equipment, widely used in pharmaceutical, chemical, feed and other unemployed powder mixing.


This type of chemical machinery has a wide adaptability to mixed materials, does not overheat heat-sensitive materials, does not pressure feed and grind granular materials, and mix materials with large contrast weights and different particle sizes will not cause chip separation.


Main Use and Application of Industrial Double Screw Cone Mixer

This machine is a new type of mixing equipment with high efficiency and high precision.
It is widely used in chemical industry, medicine, pesticide, dye, petroleum, metallurgy, building materials and other powder and powder (solid-solid), powder and liquid (solid-liquid), liquid and liquid (liquid-liquid) mixing, reaction, drying, cooling.

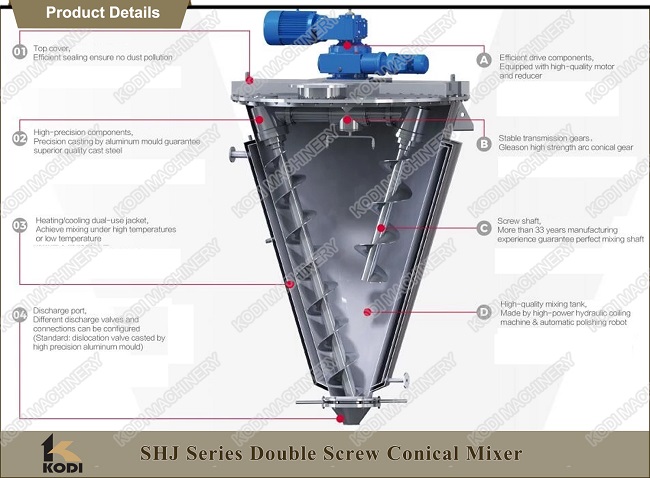

Features of KODI Double Screw Cone Mixer

1) The mixing time is short and the efficiency is high, which can increase the efficiency by 2 to 3 times.
2) The mixing capacity is large, and the charging coefficient is 20-30% higher than that of the drum type, and 25-40% higher than that of the V-type mixer.
3) The mixing precision is high, the energy consumption is low, and it can be reduced by one-half (referring to the unit weight of the material).
4) The bottom of the material is discharged quickly, and the material is discharged cleanly.


Technical Parameters of Horizontal Spiral Ribbon Mixer

Type Capacity(L) Height of Cylinder(H)

Dimensions

(D x H)

Power(kw) Outlet(mm) Weight(kg)
SHJ100 50 838 690x 1480 2.2 150 180
SHJ150 80 938 839x 1580 3 180 220
SHJ300 150 1150 950x2060 3 210 500
SHJ500 300 1440 1150x2350 4 210 600
SHJ1000 600 1840 1580x2840 5.5 260 1200
SHJ1500 800 2150 1764x3180 5.5 278 1350
SHJ2000 1000 2405 1950x3435 7.5 278 1500
SHJ3000 1500 2680 2170x3760 7.5 278 2300
SHJ4000 2000 2920 2280x4362 11 390 2520
SHJ5000 3000 3215 2470x4560 15 390 3310
SHJ6000 3500 3400 2560x4785 15 390 3550
SHJ8000 4200 3780 2790x5590 18.5 390 3700
SHJ10000 5000 4120 3000x5920 18.5 390 4500
SHJ12000 6000 4335 3210x5995 22 390 4800
SHJ15000 8000 4750 3450x6350 22 500 5500
