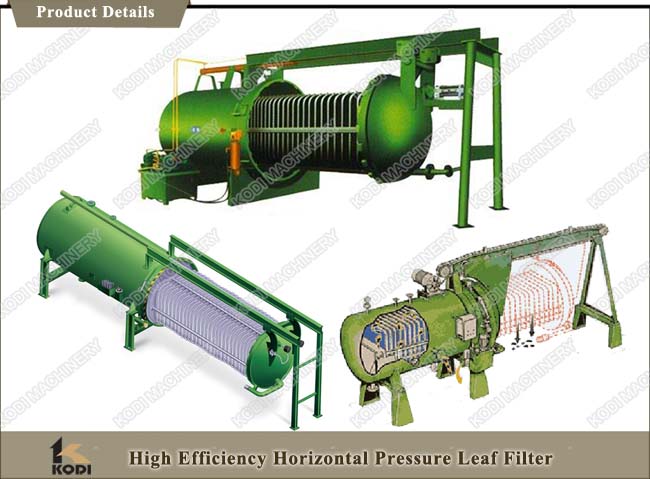

Horizontal Pressure Leaf Filter



Description of Horizontal Pressure Leaf Filter

KODI Horizontal Pressure Leaf Filter is a fine clarify filtrate equipment. They are special designed for semi-automatic or fully automatic models for fast, efficient, liquid-solid separation. The Horizontal Pressure Leaf Filter is ideally suited for high and / or constant flow, batch filtration, with dry cake or wet cake discharge options.

KODI company is strong in technology, reliable production process and improve the means of detection, our engineers will be happy to serve you and offer you the best use of your company’s filtration system, and the process can be foreign or domestic support, complete sets of stand-alone unit or supply of door-to-door services to help debug a reasonable price. Welcome to visit and give guidance.

Main Use and Application of Horizontal Pressure Leaf Filter

1. Dry cake, semi - dry cake and clarification of the leachate recycling
2. Chemical: sulfur, aluminum, composite, Plastic, aluminium dye intermediates, bleach, lubricant additives, polyethylene
3. Food industry: Sugar juices, oils, waxes, bleaching, skim off.

Basic equipment of Horizontal Leaf Filter

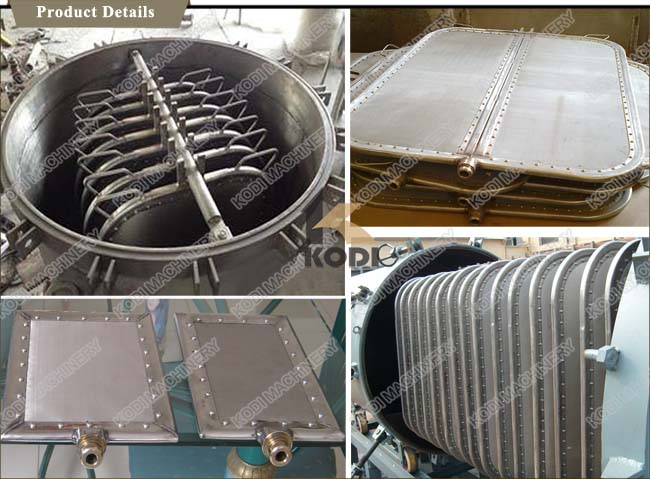

 Filter with leaves

 Hydraulic station Piping

 Instrumentation

 Electrical components

 Spare parts

 High pressure and temperature systems are available upon request

Leaf Filter Characteristics

1. Fully closed filtration, no leakage, no environmental pollution.

2. Filtration pad automatically pull the structure, easy to work in the observation and cleaning.

3. Duplex filters, large filter area, large slag amount of capacity

4. Vibration slag, reduce labor intensity

5. Hydraulic control, operational automation

6. The machine can be made into large capacity, large filtration system

Pressure Leaf Filter Advantage

 Filtration area range 5 to 500 square meter

 Ideal for high polish applications, 0.1 micron removal

 Dry and/or wet solids discharge

 Automated closed System

 Jackets available - Steam / Water / Cooler

 Control options – semi automatic or fully automatic

Technical Parameters of Horizontal Pressure Leaf Filter

Model

Filter Area

(m2)

Cylinder Diameter (mm)

Working Pressure

(Mpa)

Working Temperature

()

Working Ability

(T/h.m2)

Grease

Resin

Beverage

XY-W-5

5

               Ø900

Ø1200

Ø1400

Ø1500

Ø1600

Ø1700

Ø1800

Ø2000

0.4

150

0.2

0.7

0.8

XY-W-10

10

0.4

150

0.2

0.7

0.8

XY-W-15

15

0.4

150

0.2

0.7

0.8

XY-W-20

20

0.4

150

0.2

0.7

0.8

XY-W-25

25

0.4

150

0.2

0.7

0.8

XY-W-30

30

0.4

150

0.2

0.7

0.8

XY-W-35

35

0.4

150

0.2

0.7

0.8

XY-W-40

40

0.4

150

0.2

0.7

0.8

XY-W-45

45

0.4

150

0.2

0.7

0.8

XY-W-50

50

0.4

150

0.2

0.7

0.8

XY-W-60

60

0.4

150

0.2

0.7

0.8

XY-W-70

70

0.4

150

0.2

0.7

0.8

XY-W-80

80

0.4

150

0.2

0.7

0.8

XY-W-90

90

0.4

150

0.2

0.7

0.8

XY-W-100

100

0.4

150

0.2

0.7

0.8

XY-W-120

120

0.4

150

0.2

0.7

0.8

XY-W-140

140

0.4

150

0.2

0.7

0.8

XY-W-160

160

0.4

150

0.2

0.7

0.8

XY-W-180

180

0.4

150

0.2

0.7

0.8

XY-W-200

200

0.4

150

0.2

0.7

0.8

Packing and Delivery

Successfull Project of KODI Leaf Filter
