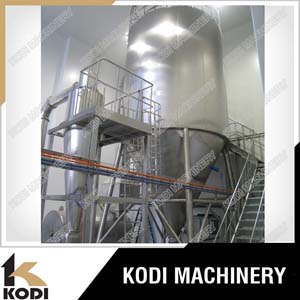

Carrageenan Centrifugal Atomizer Spray Dryer




LPG Carrageenan Spray Dryer Description

KODI Spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

LPG Carrageenan Spray Dryer Application

It's widely used in foodstuff, pharmaceutical and chemical industry, such as food flavour, egg powder, amino acid product, magnesium citrate, tea, herbal extract, beef powder, protein, maltodextrin, blood, starch, food ingredients, yeast, collagen, whey, Mg citrate, humic acid, ceramic powder, vitamin, urea resin, pectin, stevia, spirulina, microalgae, gum arabic, pigment, PAC, zinc sulfate, organic magnesium compounds, vegetable juice, coffee, creamer, coconut milk, gelatin etc.

Working Principle of LPG Carrageenan Spray Dryer

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.

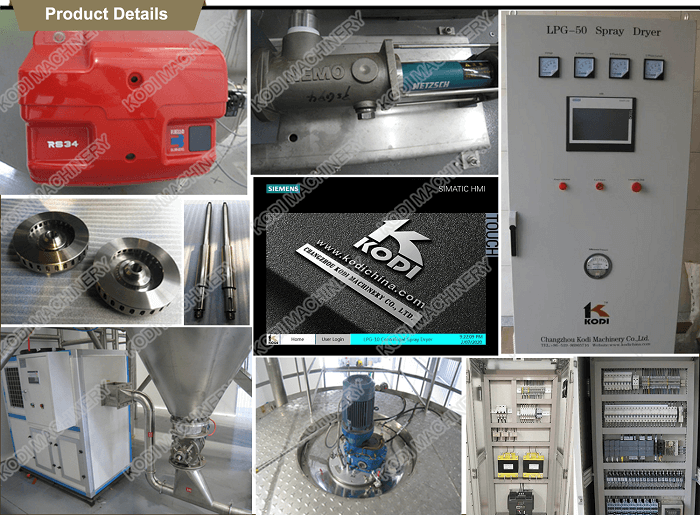

Details of LPG Carrageenan Spray Dryer

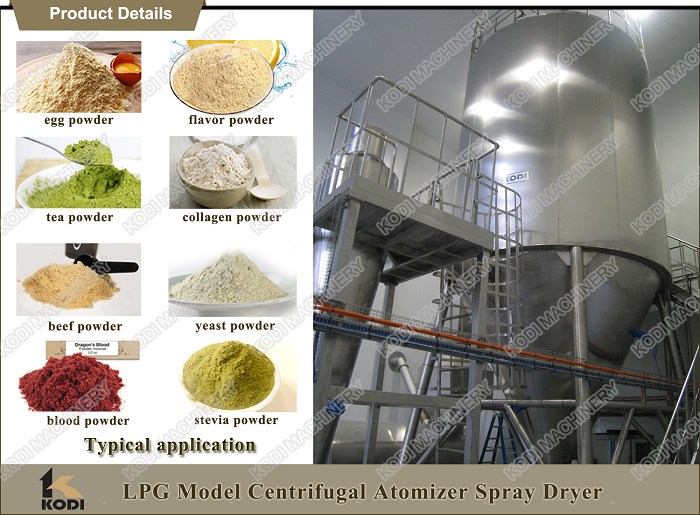

Final Product of KODI LPG Carrageenan Spray Dryer

LPG Carrageenan Spray Dryer Technical Parameters

Model

Food / Industrial Spray Dryer MODEL LPG-

5

25

50

100

150

200-5000

Inlet air temperature

≤ 350°C

Outlet air temperature

80-90°C

Evaporate capacity (kg/h)

5

25

50

100

150

200-5000

Atomizer type

compressed air drive

mechanical drive

Rotary speed

25000

22000

21500

18000

18000

15000

Diameter of atomizer disc (mm)

50

120

120

120

150

180-500

Heating source

Electricity

Electricity/LPG/

Natural gas/Oil/Steam

Electricity/LPG/

Natural gas/Oil/Steam

Electricity/LPG/

Natural gas/Oil/Steam

Electricity/LPG/

Natural gas/Oil/Steam

Electricity/LPG/

Natural gas/Oil/Steam

Electric-heating power (kw)

9

-

-

-

-

 -

Dry powder yield (%)

≥ 95

≥ 95

≥ 95

≥ 95

≥ 95

≥ 95

Successful Experience Overseas of KODI LPG Carrageenan Spray Dryer

LPG spray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service.
