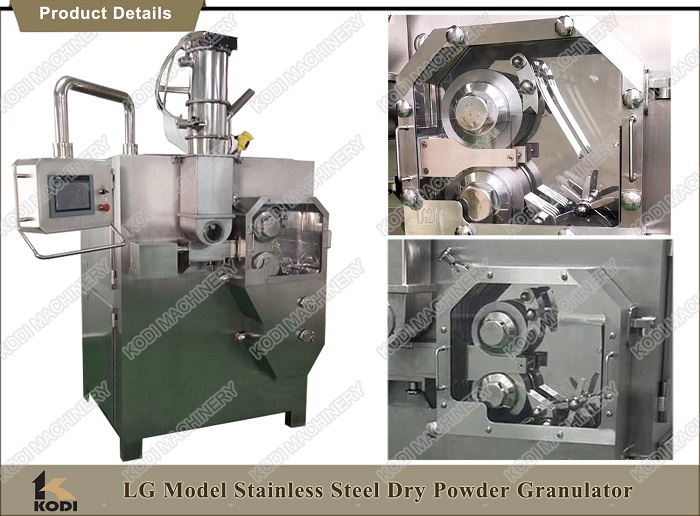

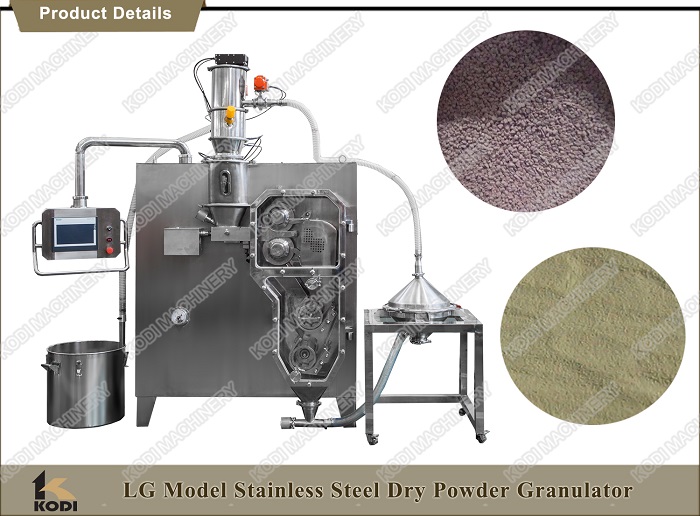

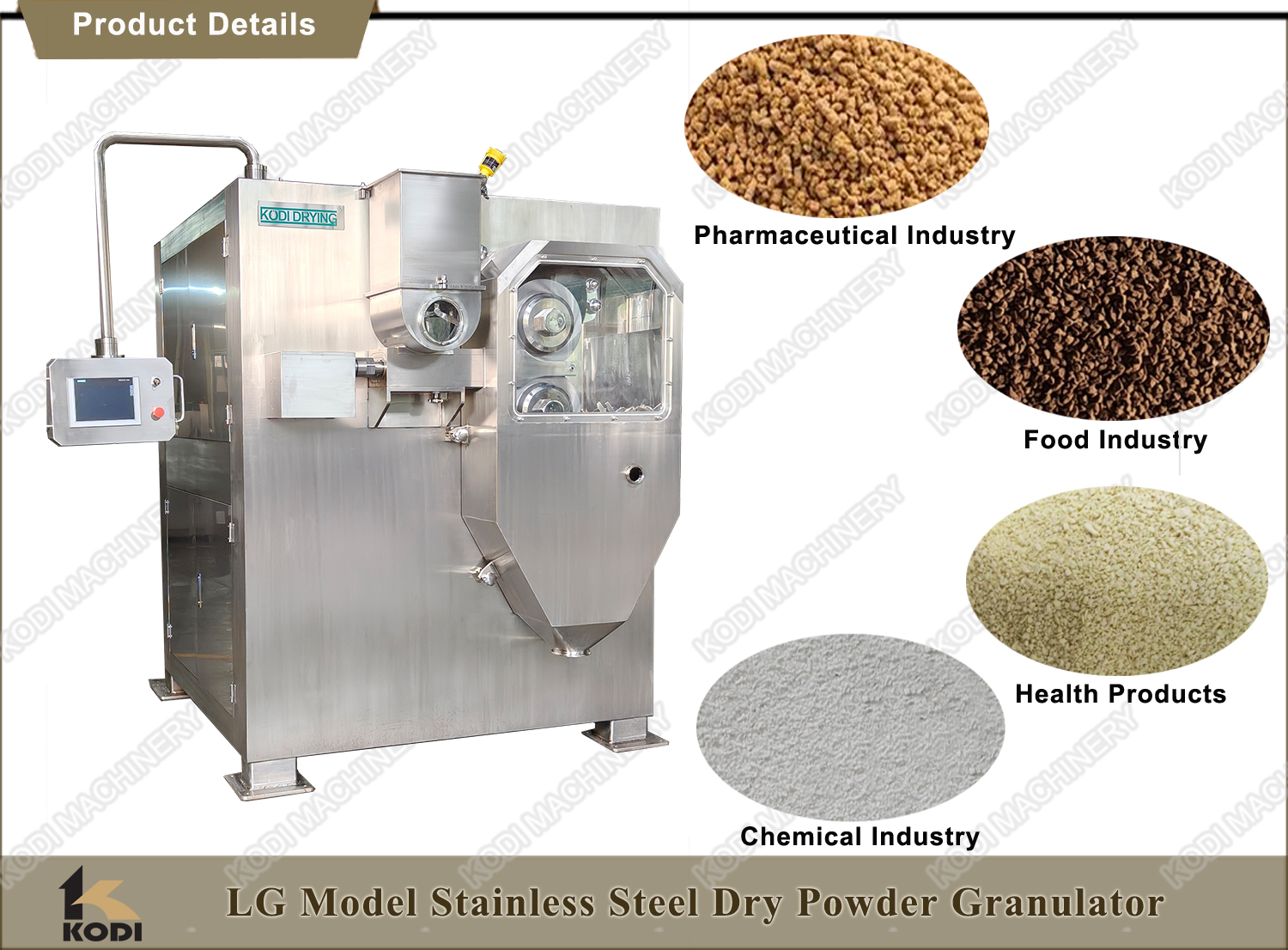

LG Dry Powder Granulator



Description of Double Roller Dry Powder Granulator

LG model dry powder granulator is absorbing domestic and international advanced granulation technology, leading a technical performance, meticulous research and development of economy, environmental protection products, the extrusion, crushing, granulating functions, powder can be directly pressed into the mixed particles. The roller control equipment using the latest technology, through the physical the fluctuation of regulation of different materials and between different batches of the same batch of material, the process parameters of dry granulator (such as the amount of processing, sheet density, roller pressure, rotational speed) can be accurately repeated adjustment, thus efficient production of high-quality grain, and improve the stability of the particles, disintegration and dissolution. And the equipment covers an area of small, simple process, energy saving, easy disassembly and cleaning, the particles can be made directly into tablet filling capsules. Widely used in the pharmaceutical industry.

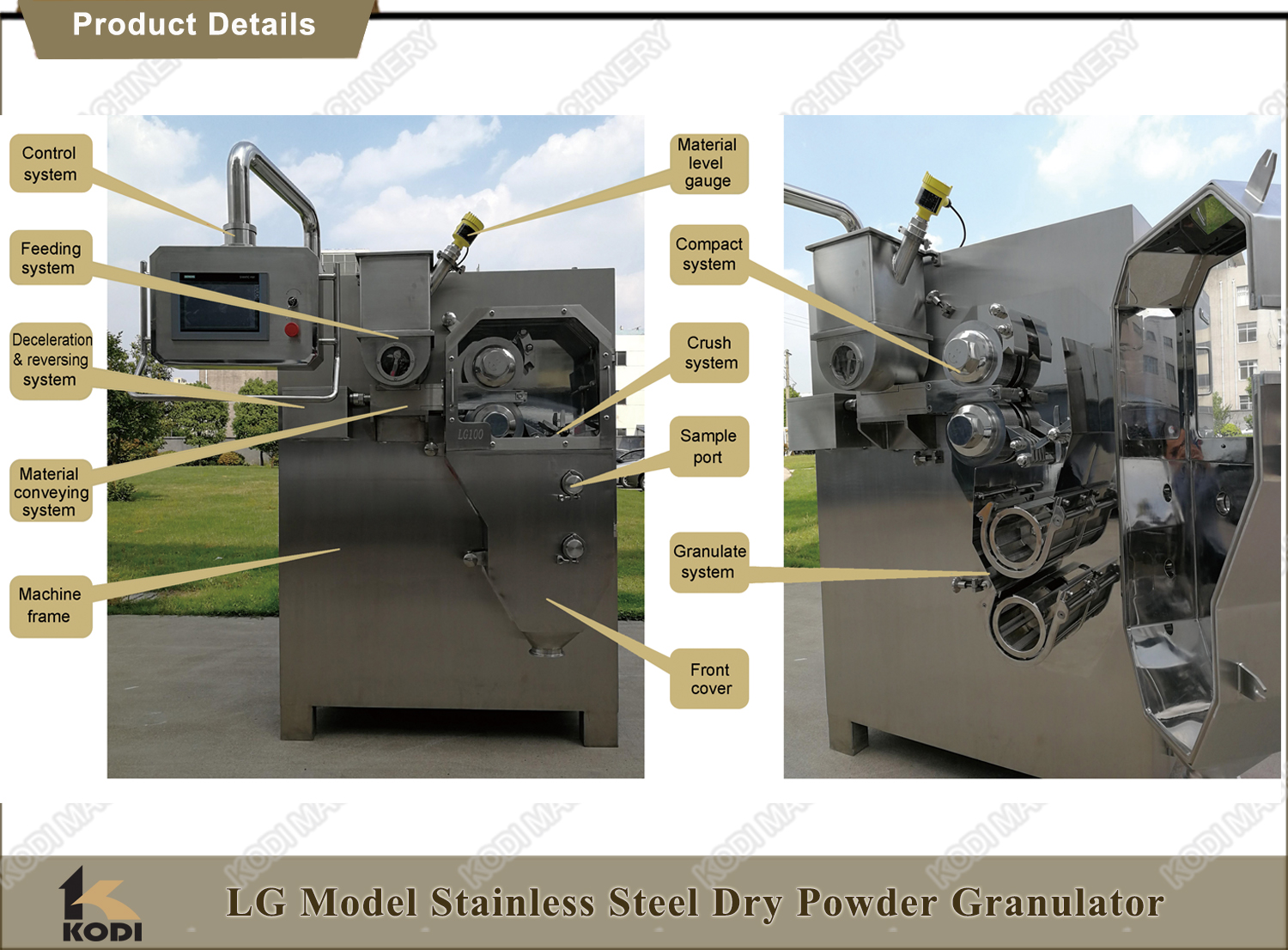

Features of Double Roll Granulator

(1) Devices prepared by particle device and a power device in space isolation installation, to avoid cross contamination;

(2) All the parts that contact the materials of convenient disassembly, easy cleaning, the studio closed, effectively prevent dust leakage, pollution of the environment;

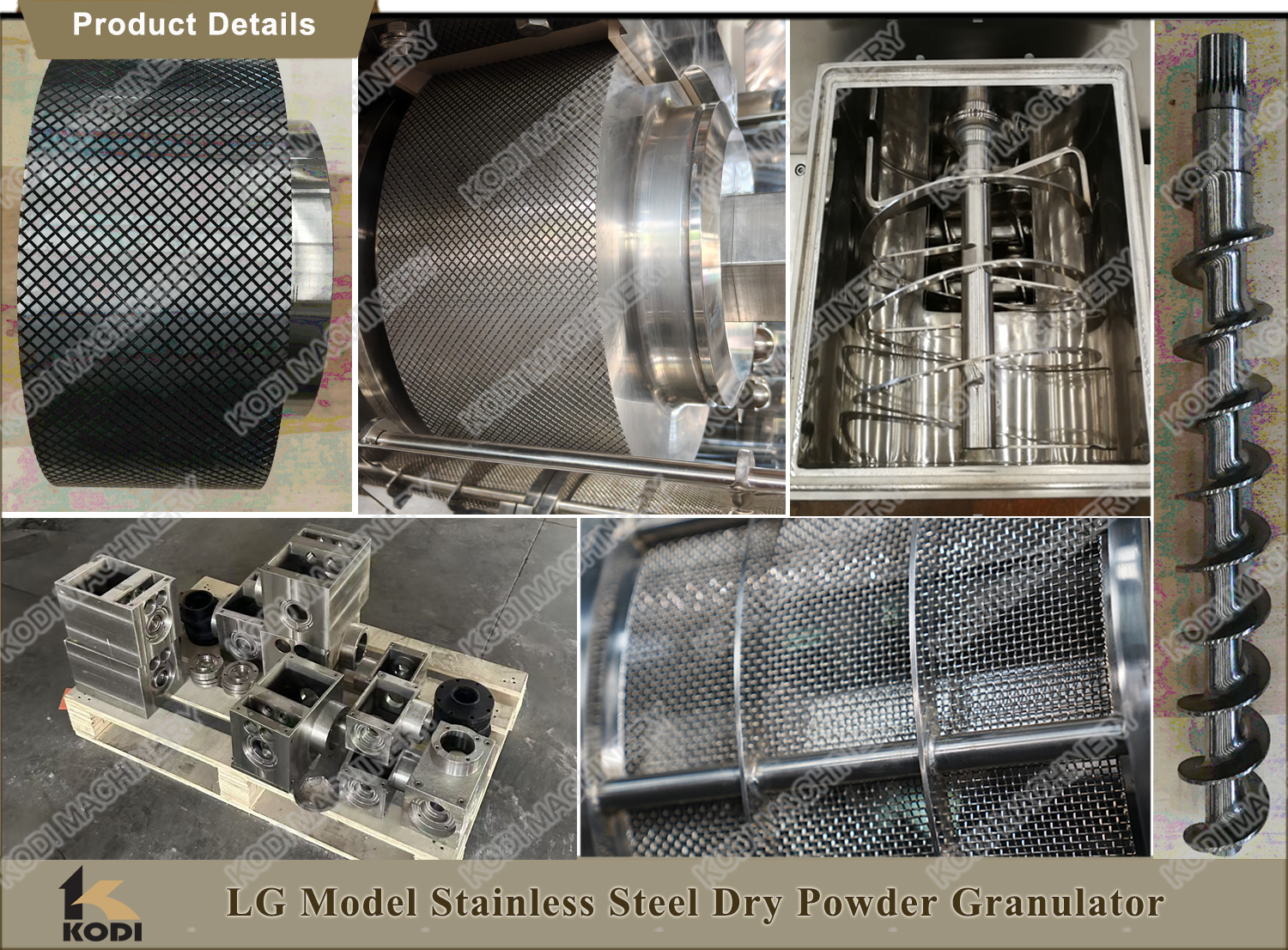

(3) Extrusion wheel adopts special stainless steel material, to ensure the application of stiffness, avoid material pollution;

(4) Unique the cooling system, transportation, paving material flow smoothly 'density is more uniform, and effectively control the conveying surface temperature device, avoid the equipment long-term continuous operation lead to material melt sticking or particle discoloration phenomenon (patent technology);

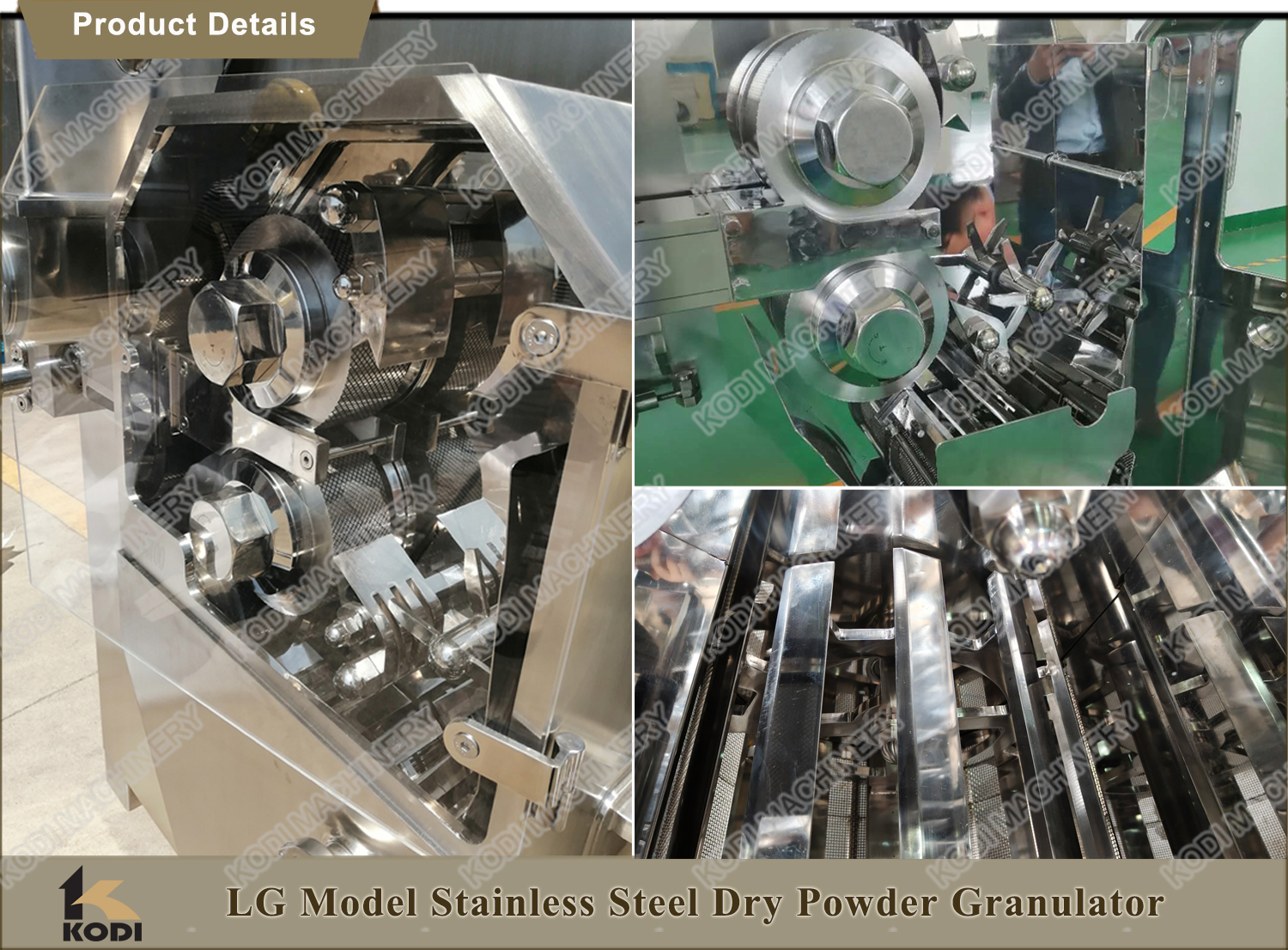

(5) Unique extrusion device: to ensure the pressure constant, sheet thickness uniform roller gap automatic adjustment, satisfy the continuity requirements and finished granulation production; cooling system:

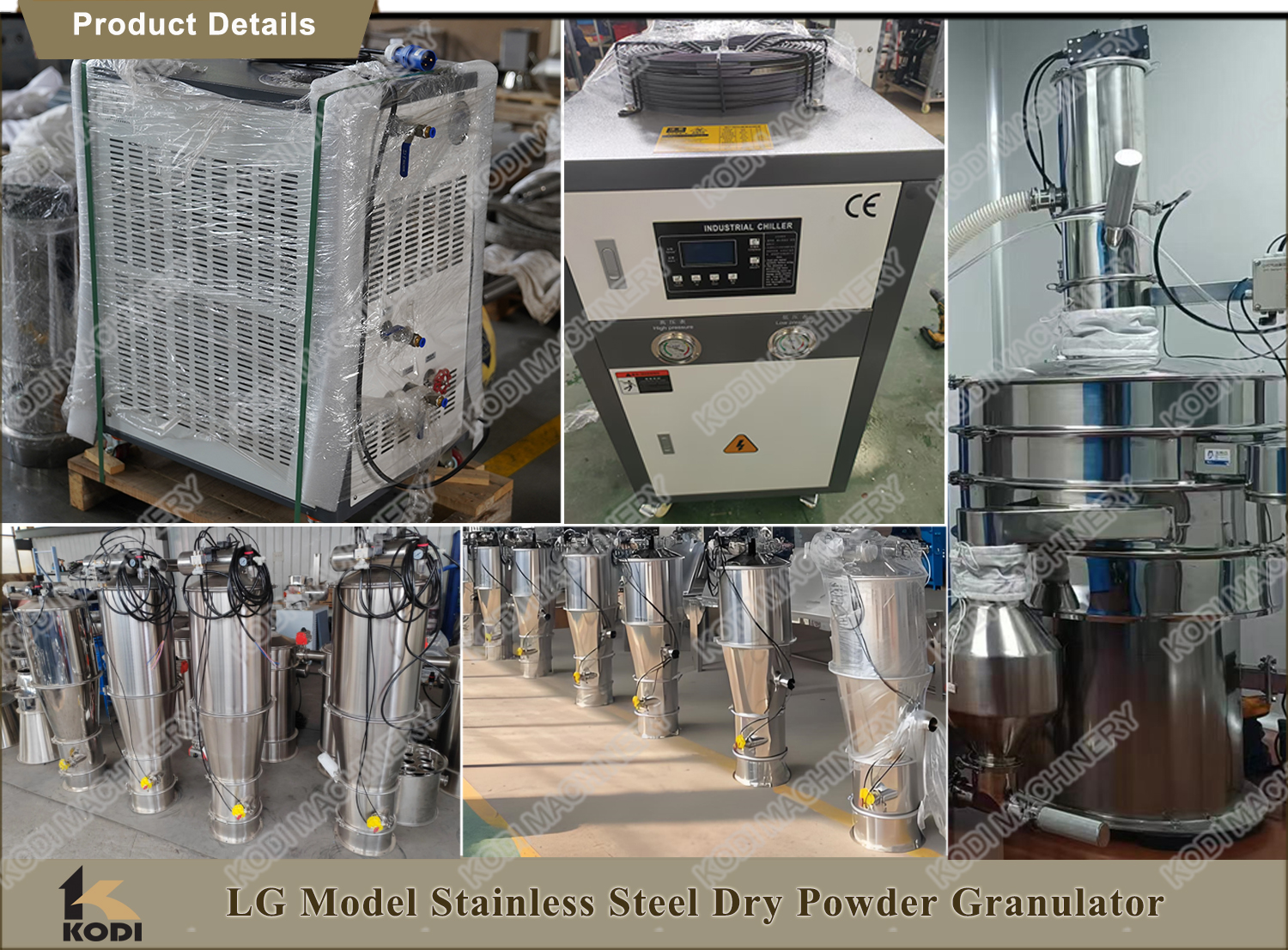

(6) Unique equipment adopts air cooling / water cooling technology, pressure roller surface temperature rise and controllable. Automatic adjustment of pressure roller temperature, the sheet without dissolution, adhesion, discoloration, roller without dew, effectively reduce the possibility of pollution;

(7) Unique feeding system with novel structure and elliptic hopper ventilation structure, smooth transition, improve the flow performance of the raw material, avoids the material caused by air resistance and poor flow the bridging phenomenon, to ensure the continuity of production equipment;

(8) Unique appearance generous novel, artistic, and the visual design, convenient observation, maintenance, improve the controllability of the equipment;

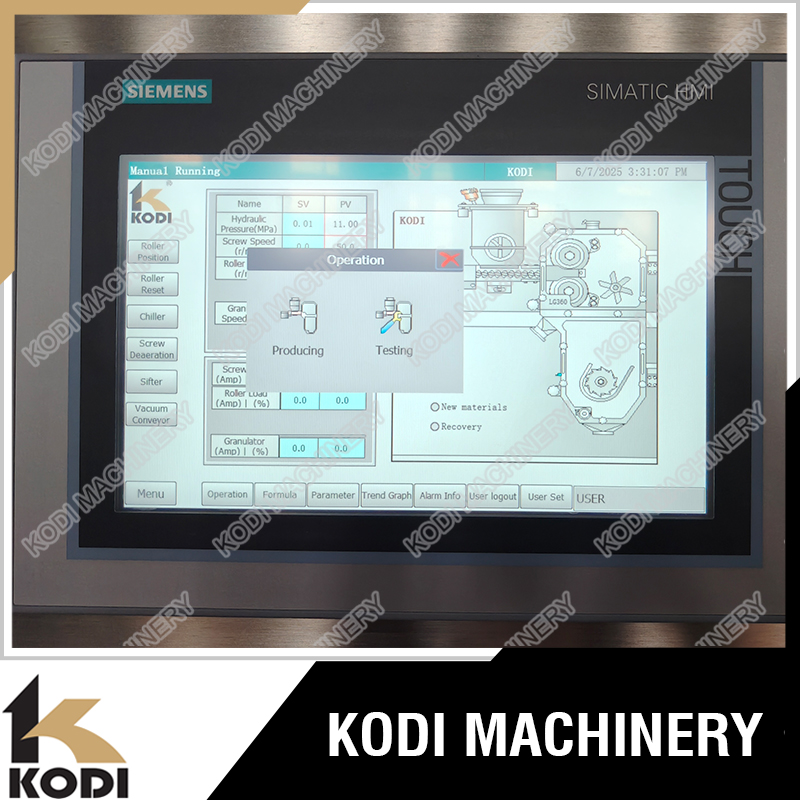

(9) The system of man-machine interface, beautiful appearance, simple operation, easy to master;

(10) Fully meet the requirements of GMP

Dry Powder Double Roll Granualtor Technical Parameters

Item Standard Standard Standard Standard
Model LG40 LG100 LG200 LG300
Capacity 20-80kg/h 40-150kg/h 120-200kg/h 200-350kg/h
Compress pressure 0-25Mpa 0-25Mpa 0-25Mpa 0-25Mpa
Roll speed 0-40r/min±10% inverter 0-42r/min±10% inverter 0-50r/min±10% inverter 0-60r/min±10% inverter
Mixing speed 0-60r/min±10% inverter 0-60r/min±10% inverter 0-60r/min±10% inverter 0-60r/min±10% inverter
Feeding speed 0-160r/min±10% inverter 0-160r/min±10% inverter 0-200r/min±10% inverter 0-240r/min±10% inverter
Crushing speed 0-280r/min±10% inverter 0-280r/min±10% inverter 0-280r/min±10% inverter 0-280r/min±10% inverter
Granulating first speed 0-207r/min±10% inverter 0-207r/min±10% inverter 0-207r/min±10% inverter 0-280r/min±10% inverter
Granulating second speed   0-207r/min±10% inverter 0-207r/min±10% inverter 0-280r/min±10% inverter
Granulating first screen mesh 10; 12; 14; 16mesh (replacement) 6x6 square hole 6x6 square hole 6x6 square hole
Granulating second screen mesh   10; 12; 14; 16mesh (replacement) 10; 12; 14; 16mesh (replacement) 10; 12; 14; 16; 30mesh (replacement)
Max working power (feeding + conveying + pressing + crushing + water pump + granulating + hydraulic pressure) 0.37kw + 2.2kw + 4kw + 1.1kw + 0.55kw + 1.5kw + 0.75kw 0.37kw + 4kw + 7.5kw + 1.1kw + 0.55kw + 1.5x2kw + 0.75kw 0.37kw + 4kw + 11kw + 0.55kw + + 1.5x2kw + 0.75kw 0.37kw + 4kw + 11kw + 0.55kw + + 1.5x2kw + 0.75kw
Power 50hz±0.5hz 50hz±0.5hz 50hz±0.5hz 50hz±0.5hz
Product contact parts Easily for disassembly Easily for disassembly Easily for disassembly Easily for disassembly
Product contact parts material SUS304 / SUS316L SUS304 / SUS316L SUS304 / SUS316L SUS304 / SUS316L

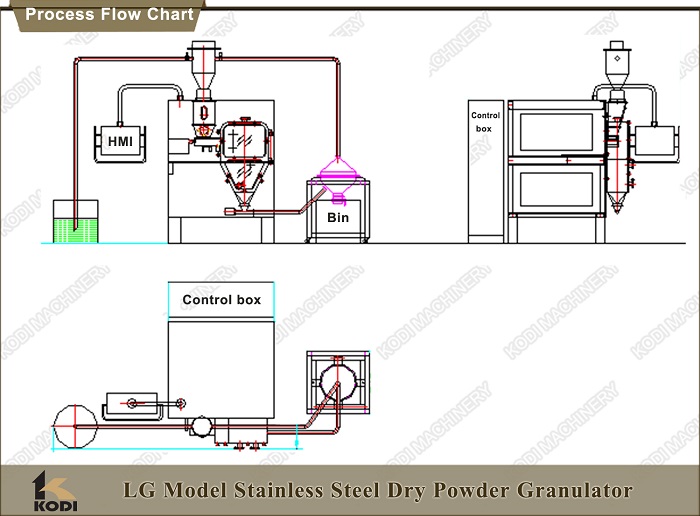

Dry Powder Double Roll Granualtor Process Flow Chart

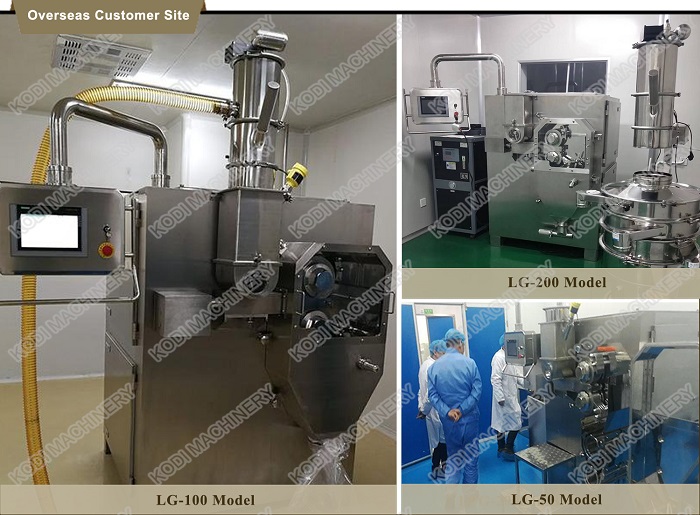

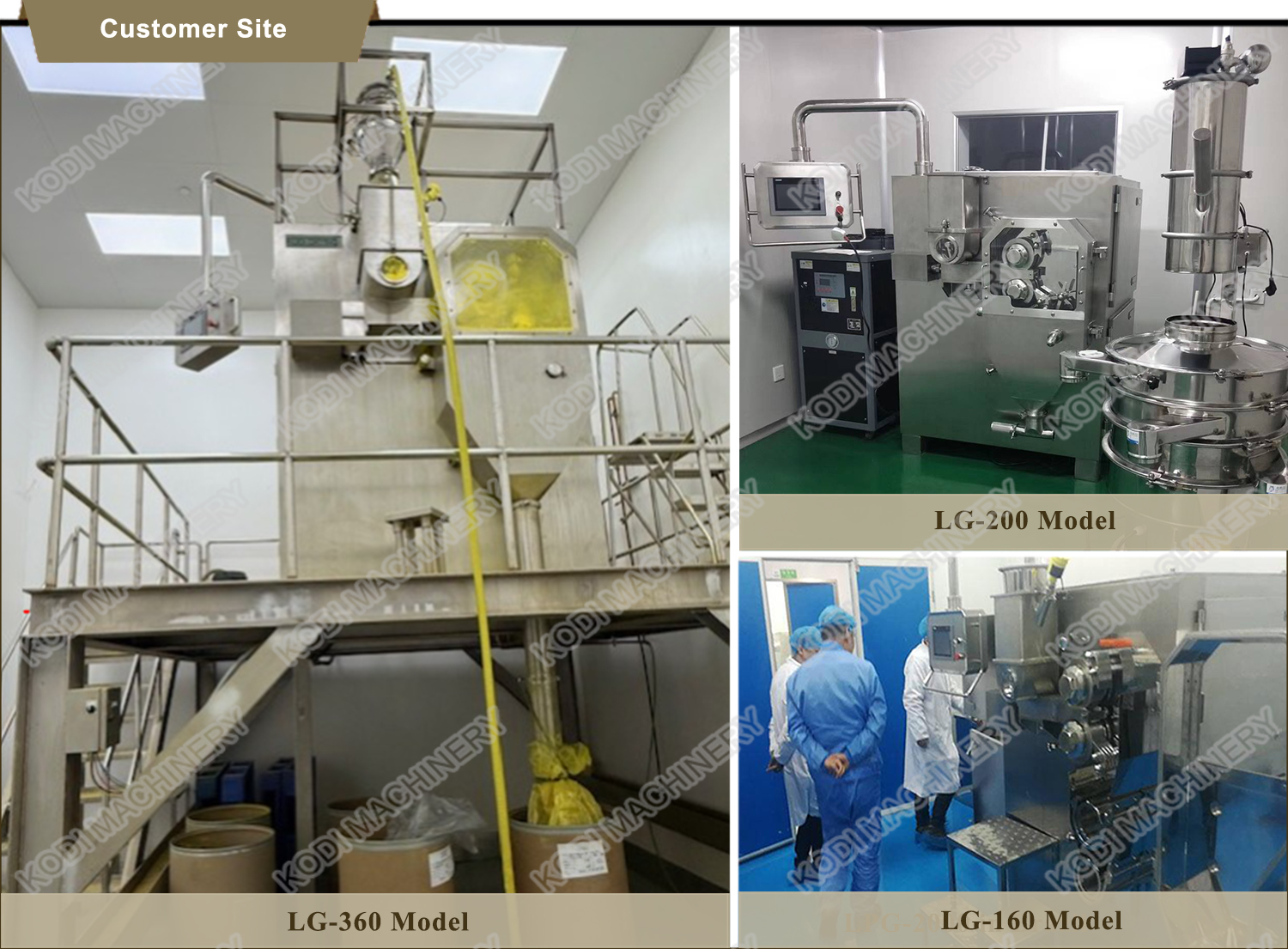

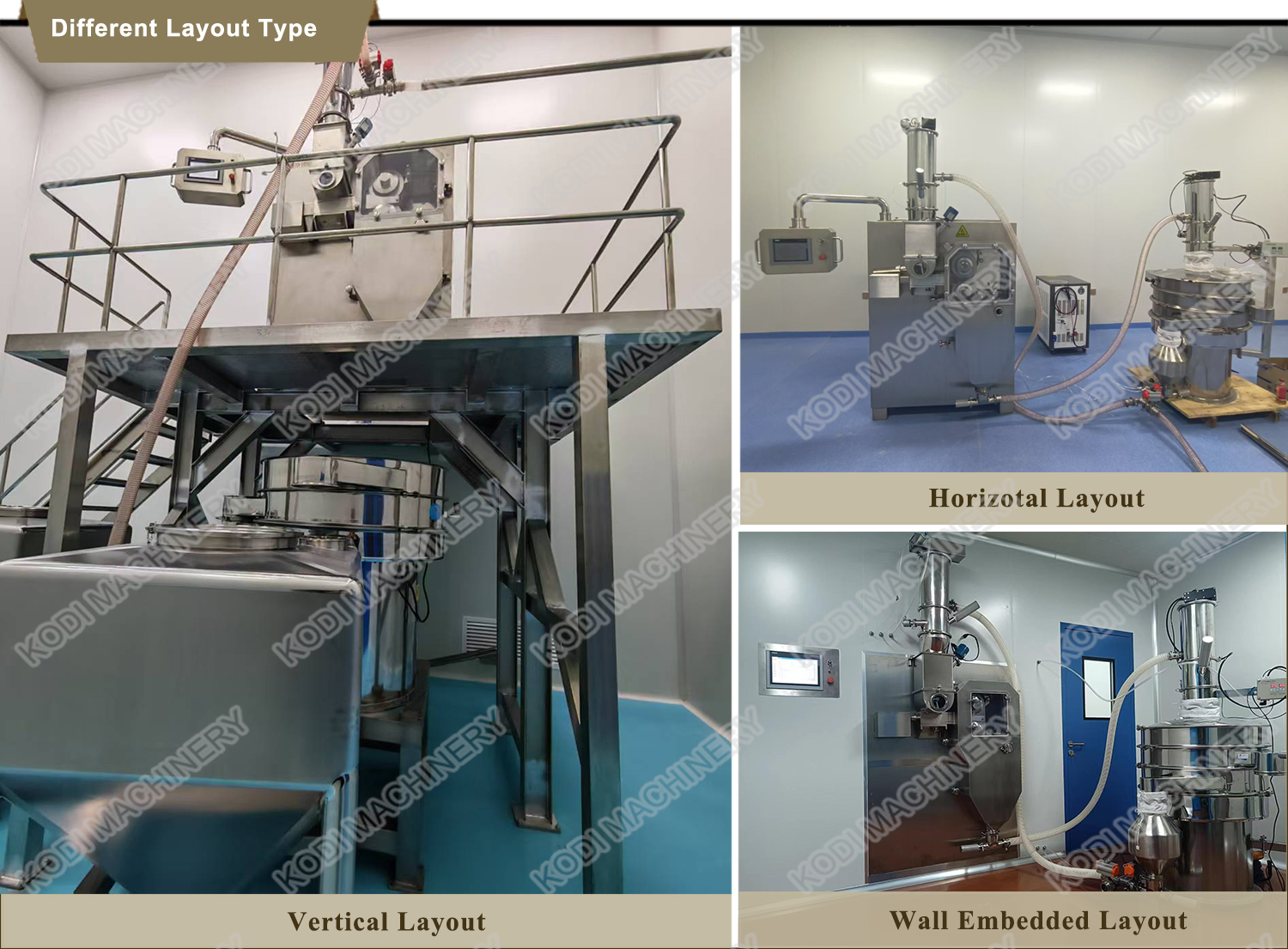

Successful Project by KODI Double Roller Granulator Equipment
