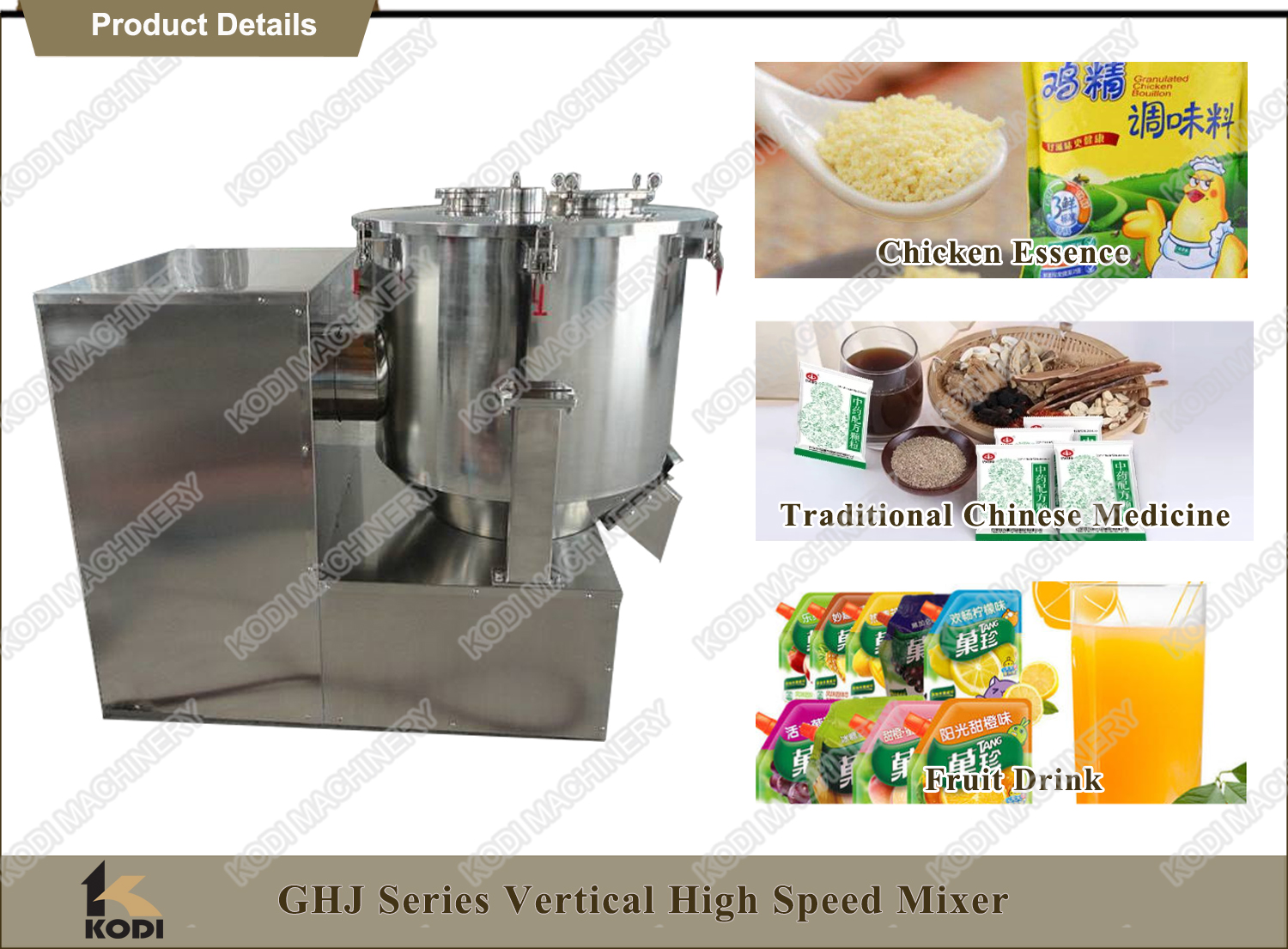

GHJ Model Wet Powder High Speed Vertical Mixer

Description of High Speed Vertical Mixer


High speed vertical mixer is extensively used in pharmaceutical, chemical, metallurgical, food, light and agricultural industries for small scale mixing. This machine can carry out even mixing of powders or slurry materials with different proportion, so that the mixed materials can reach their best effectiveness.

Working Principle of Wet Powder High Speed Vertical Mixer

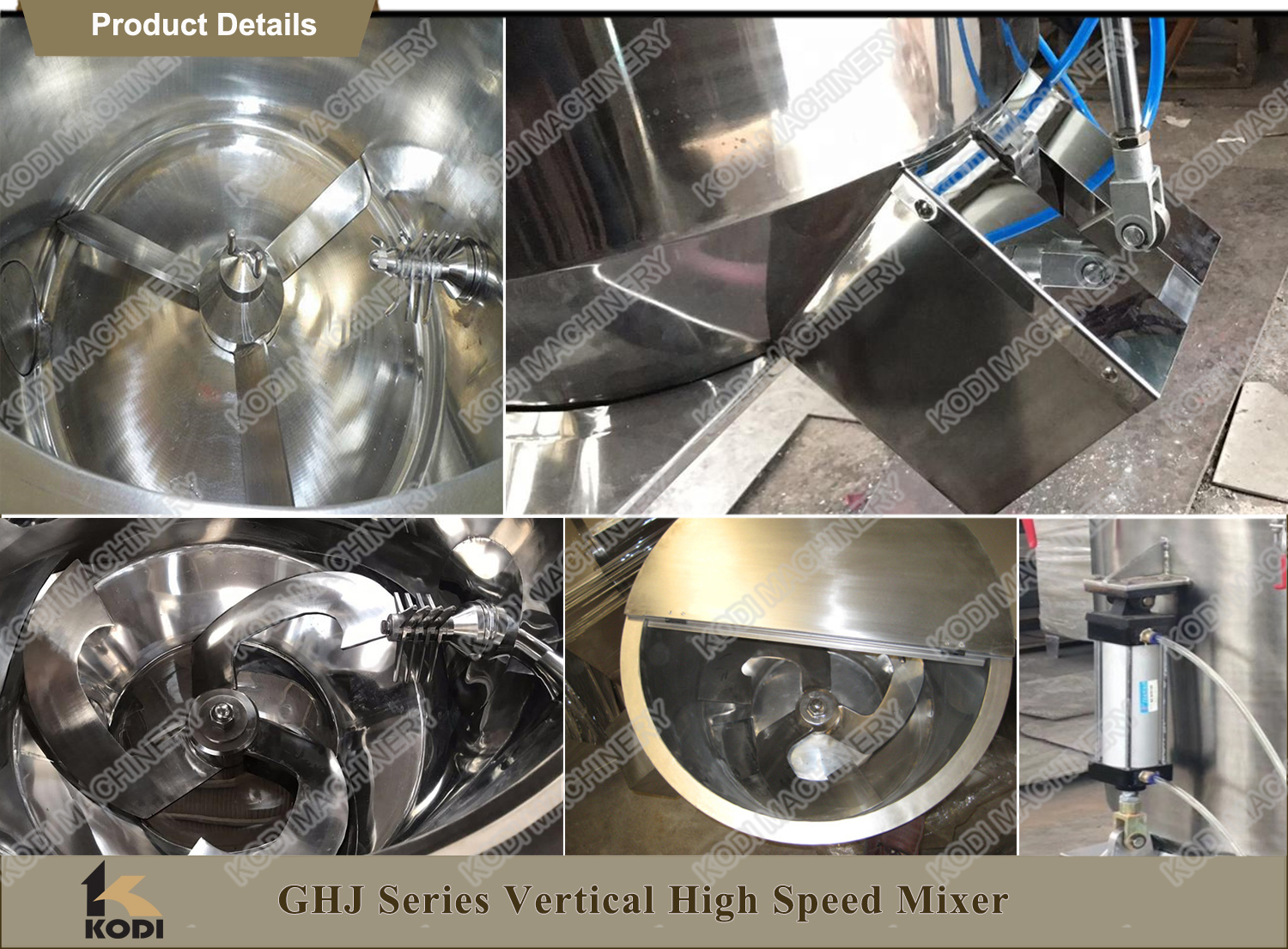

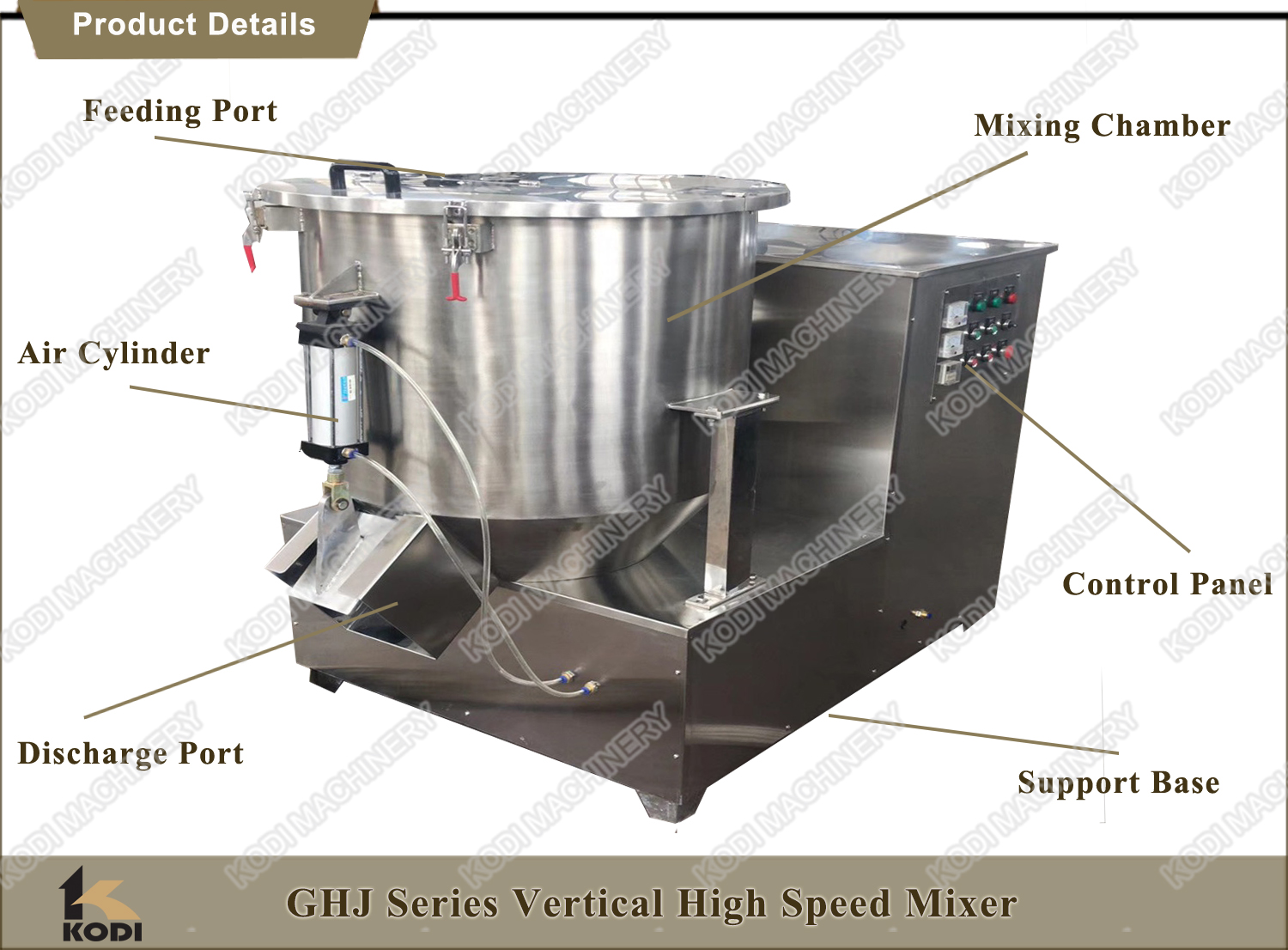

High speed vertical mixer consists of a vertical mixing barrel, bottom placed agitating impeller and side installed choppers. When powders or slurry materials are fed into the mixing barrel, the specially designed rotating impeller pushes the material onto the inner barrel wall. Under the effect of centrifugal force, the material will move up alongside the barrel wall to form a swirl flow. At the same time, the side installed high-speed chopper completely shear and chop the materials to get uniform mixing.



Features of KODI Flour Powder Mixer

• Mix evenly, can not find a small block;

• Mixing time is short;

• The feeding and discharging are very convenient, the operation is simple and sanitary;

• The machine cleaning is simple, as long as the water into the hopper, start rotation, and then release the water, you can clean it;

• The sealing structure is carefully designed, the sealing performance is reliable, the maintenance is convenient to disassemble and assemble, and the whole gear is processed by heat treatment, and the service life is long.



Technical Parameters of Flour Powder Mixer

Type

Working Volume (L)

Stirring weight (Kg/batch)

Installed power (Kw)

Weight (Kg)

Overall dimension (mm)

GHJ-350

350

150

7.37

600

1500x1090x1200

GHJ-400

400

200

8.07

650

1500x1090x1300

GHJ-850

850

400

10.87

850

1718x1320x1400

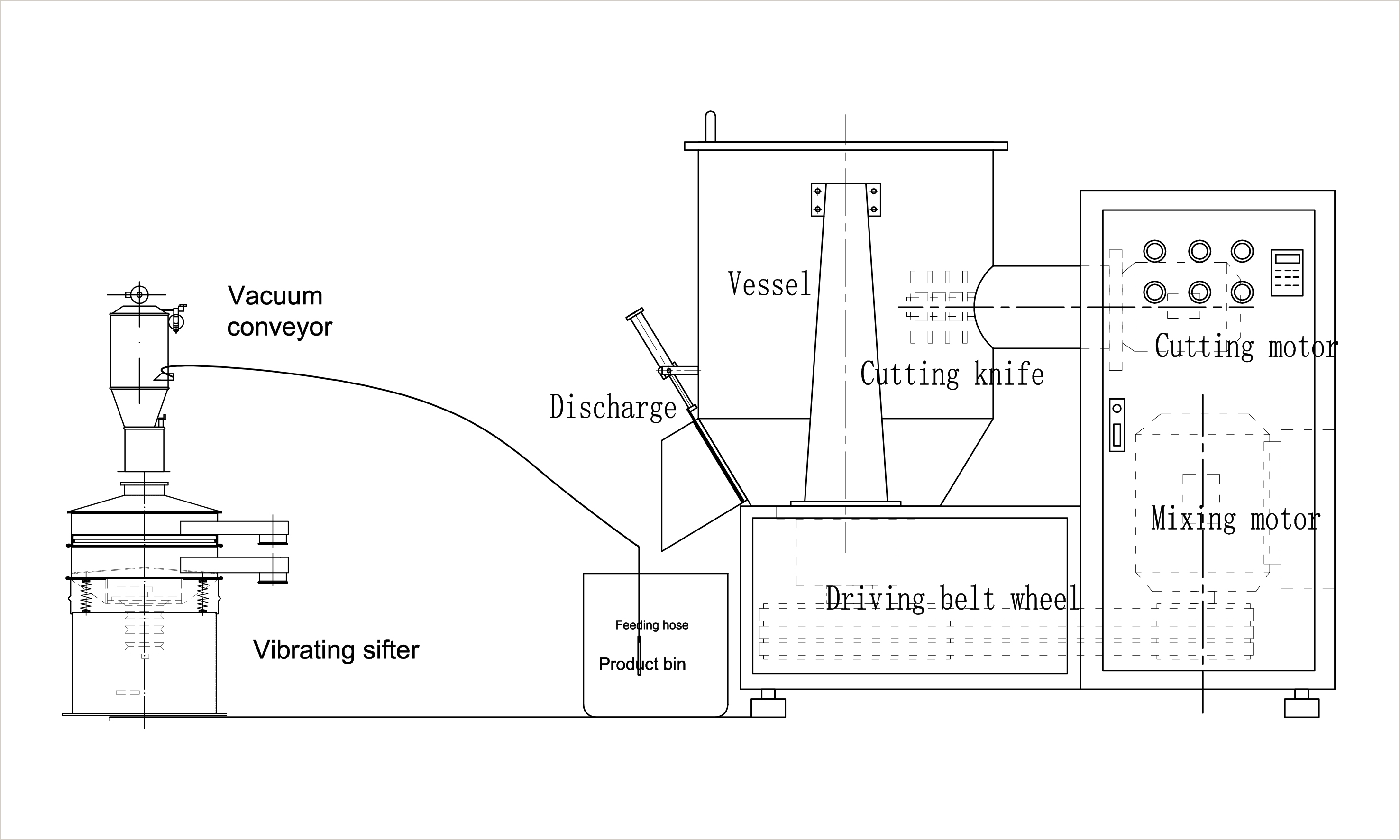

Drawings of Food Mixer Machine
