Working Principle

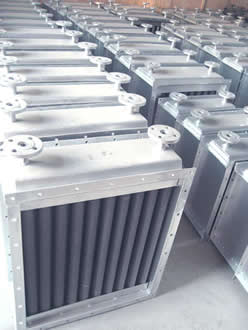

SRZ and SRL helical finned radiators are mainly used for heating air in drying system, which is main part of hot air device. The thermal medium can be steam, hot water or heat conducting oil. In generally , the steam working pressure should less than 0.8MPa, The hot air temperature should below 150.
Technical parameter
|
Model |
Heat exchange pipe |
Heat exchange area (m2) |
Overall dimension | ||
|
Specification |
Length(mm) |
Quantity | |||
|
SRZ5×5D |
￠18×2 |
512 |
32 |
10 |
580*580*180 |
|
SRZ6×6D |
￠18×2 |
612 |
41 |
15 |
680*680*180 |
|
SRZ7×7D |
￠18×2 |
712 |
47 |
20 |
780*780*180 |
|
SRZ10×5D |
￠18×2 |
1012 |
32 |
20 |
1080*580*180 |
|
SRZ10×6D |
￠18×2 |
1012 |
41 |
25 |
1080*680*180 |
|
SRZ12×6D |
￠18×2 |
1212 |
41 |
31 |
1280*680*180 |
|
SRZ15×6D |
￠18×2 |
1512 |
41 |
38 |
1580*680*180 |
|
SRZ10×7D |
￠18×2 |
1012 |
47 |
28 |
1080*780*180 |
|
SRZ12×7D |
￠18×2 |
1212 |
47 |
36 |
1280*780*180 |
|
SRZ15×7D |
￠18×2 |
1512 |
47 |
42 |
1580*780*180 |
|
SRZ15×10D |
￠18×2 |
1512 |
68 |
62 |
1580*1080*180 |
|
SRZ20×10D |
￠18×2 |
2012 |
68 |
85 |
2080*1080*180 |
