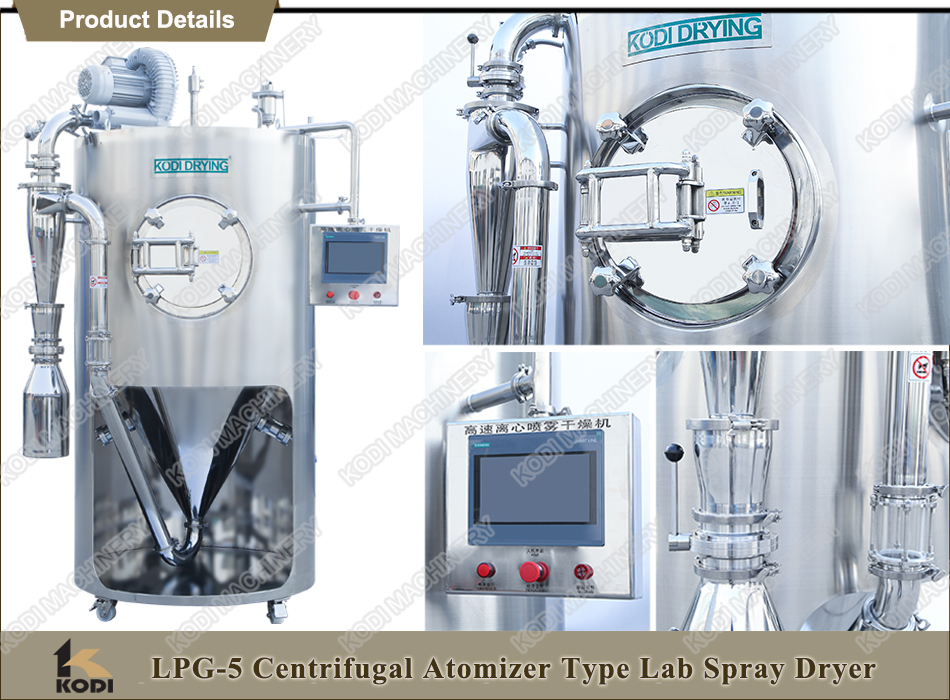

Lab Spray Dryer Description
LPG Pilot / Lab Spray Dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
Lab Spray Dryer Application
LPG lab/pilot spray dryer is widely used in foodstuff, pharmaceutical and chemical industry, such as food flavour, egg powder, amino acid product, magnesium citrate, tea, herbal extract, beef powder, protein, maltodextrin, blood, starch, food ingredients, yeast, collagen, whey, Mg citrate, humic acid, ceramic powder, vitamin, urea resin, pectin, stevia, spirulina, microalgae, gum arabic, pigment, PAC, zinc sulfate, organic magnesium compounds, vegetable juice, coffee, creamer, coconut milk, gelatin etc.
Laboratory Spray Dryer Working Principle
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Final Product of KODI LPG Spray Dryer
Packing and Delivery of LPG Spray Dryer
Successful Experience Overseas of KODI LPG Spray Dryer
LPG spray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service.
LPG Spray Dryer Technical Parameters
|
Evaporation |
3～5Kg/h |
Dia/Height |
1.0M/2.2M |
|
Operation temperature |
Inlet 180℃ Outlet 90℃ |
Atomizer Dia 50mm |
Pneumatic driving Max 30000r.p.m |
|
Power |
Drive: 0.75KW |
Water consumption |
0.1m3/h |
|
Heater: 12-15KW |
|||
|
Type |
Open circle |
Feeder |
Peristaltic pump |
|
Air contact |
Co-current |
Heater |
Electric heater |
|
Collection |
Cyclone |
Atomizer |
Centrifugal atomizer |
|
Control |
Inlet air adjustable by inverter |
||
|
Overall size |
1.68×1.5×2.1 |
Weight |
About 500Kg |
|
Packing |
Poly-wood box |
Power |
3Ph, 220-440V, 50/60Hz |
|
No. |
Item |
Model |
Qty. |
Material |
Notes |
|
Feeding system |
|||||
|
1 |
Peristaltic pump |
BT-100 |
1set |
Sanitary |
0.3Kw |
|
2 |
Feeding pipe |
|
1set |
SUS304/SUS316L |
|
|
Circulation system |
|||||
|
1 |
Suction blower |
9-19 |
1set |
SUS304 |
0.75KW |
|
2 |
Air valve |
|
1set |
SUS304 |
|
|
3 |
Hot air pipe |
|
1set |
SUS304 |
|
|
4 |
Air out pipe |
|
1set |
SUS304 |
|
|
5 |
Pipe fittings |
|
1set |
SUS304 |
|
|
Air system |
|||||
|
1 |
Air filter |
|
1set |
SUS304 |
Initial and middle |
|
2 |
Air heater |
12Kw |
1set |
SUS304 |
|
|
3 |
Pipe fitting |
|
1set |
SUS304 |
|
|
4 |
Hot air pipe |
|
1set |
SUS304 |
Insulation |
|
Main machine |
|||||
|
1 |
Drying chamber |
D1000 H2200 |
1set |
SUS304/SUS316L |
|
|
2 |
Air distributor |
|
1set |
SUS304 |
|
|
3 |
Air cover |
|
1set |
SUS304 |
|
|
4 |
Atomizer |
LPG5/Dia 50mm |
1set |
SUS304/SUS316L |
|
|
5 |
Light |
100W |
1set |
|
|
|
6 |
Manhole |
|
1set |
SUS304/SUS316L |
|
|
7 |
Insulation |
|
|
Glass fiber |
|
|
8 |
Hammer |
SK40 |
2sets |
Aluminum |
|
|
9 |
Ladder |
|
1set |
SUS304 |
|
|
Powder collection system |
|||||
|
1 |
Cyclone |
XF170 |
1set |
SUS304/SUS316L |
|
|
2 |
Discharge valve |
|
1set |
SUS304/SUS316L |
|
|
3 |
Product jar |
|
1set |
SUS304/SUS316L |
|
|
4 |
Air pipe |
Quick opening |
1set |
SUS304 |
|
|
Control system |
|||||
|
1 |
Control box |
|
1set |
SUS304 |
|
|
2 |
PLC |
SIEMENS |
1set |
|
|
|
3 |
Touch screen |
SIEMENS |
1set |
|
|
|
4 |
Contactor |
SIEMENS |
1set |
|
|
