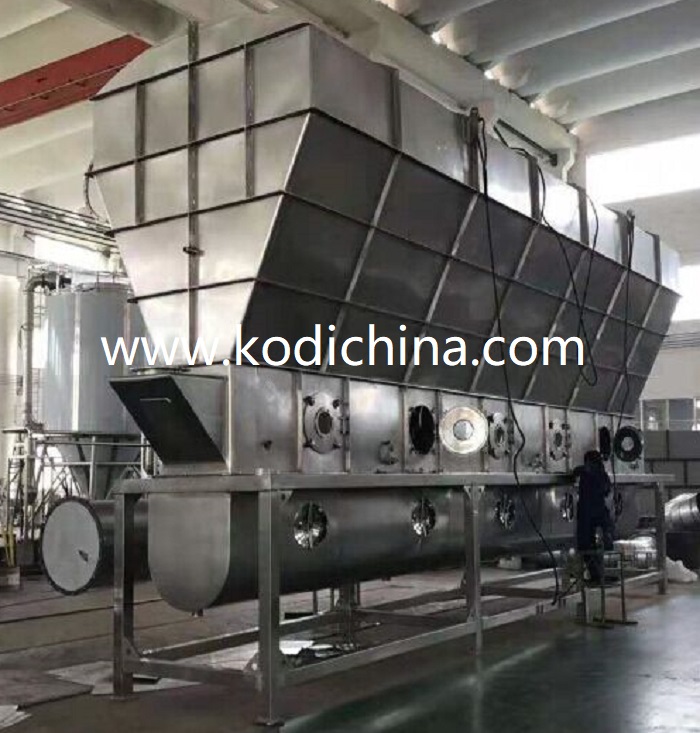

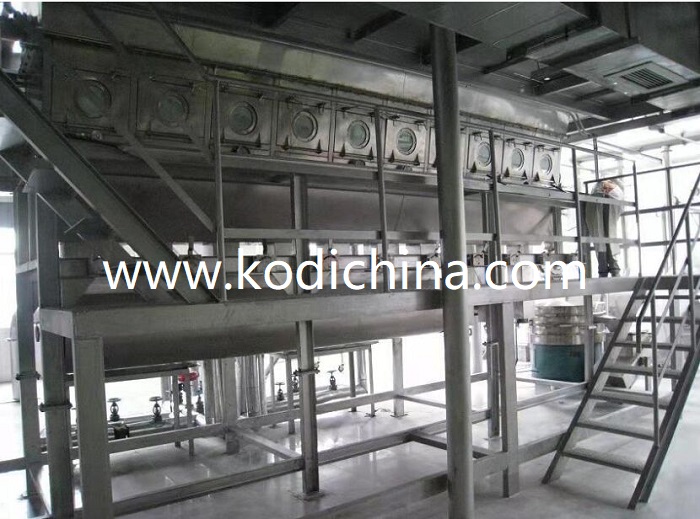

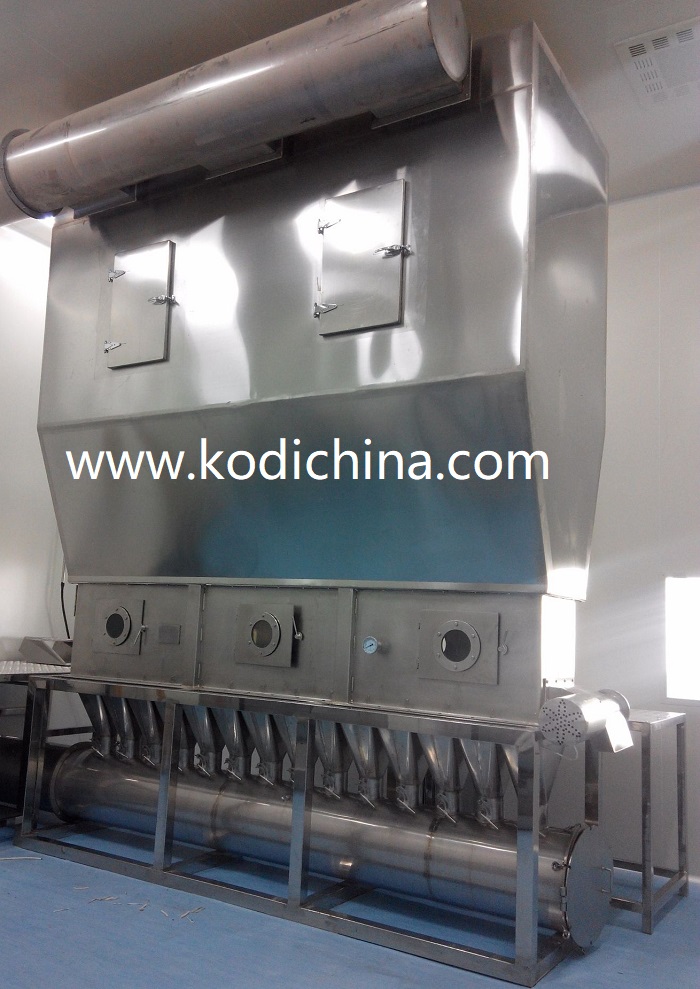

XF Model Horizontal Continuous Fluid Bed Dryer Introduction
Time:2021-12-09 Reading times:310
Product Description:
KODI XF series horizontal fluid bed dryer is composed of air filter, heater, fluidized bed body, dust collection device (cyclone separator or bag filter), fan, etc. It is suitable for pharmaceuticals, chemical raw materials, food processing, and feed drying operations. Such as: raw materials, tablet granules, Chinese medicine granules, health foods, beverage granules, feed, plastic resin, citric acid and other materials, etc. The particle size of applicable materials is generally 0.1～6mm ( best particle size is 0.5～3mm).
Working Principle:
The clean hot air is distributed into the bed through the valve plate, and the wet material entering from the feeder is boiled by the hot air. Since the hot air is in extensive contact with the material, the heat and mass transfer process is enhanced, so it can be dried in a relatively short time.
If the continuous type is used, the material enters from one end of the bed, after tens of seconds to a few minutes, boiling and drying, and automatically flows out from the other end of the bed. This equipment is generally operated under negative pressure. Steam, electricity, and hot air furnace can all be choosed (matching according to user requirements).
If you want to know more about our machines, welcome to our website: www.kodichina.com
