KODI Lithium battery Material Lithium Iron Phosphate LFP Spray Dryer



KODI Lithium battery Material Lithium Iron Phosphate LFP Spray Dryer

1, Lithium Iron Phosphate spray dryer / Lithium battery spray dryer / LFP spary dryer

2, Liquid or slurry drying processor

3, Easy operation and control

4, Stainless steel

LPG Lithium Iron Phosphate Spray Dryer Description

KODI Lithium Iron Phosphate Spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

LPG LFP Spray Dryer Application

It's widely used in foodstuff and chemical industry, such as food flavour, egg powder, amino acid product, magnesium citrate, tea, herbal extract, beef powder, protein, maltodextrin, blood, starch, food ingredients, yeast, collagen, whey, Mg citrate, humic acid, ceramic powder, vitamin, urea resin, pectin, stevia, spirulina, microalgae, gum arabic, pigment, PAC, zinc sulfate, organic magnesium compounds, vegetable juice, coffee, creamer, coconut milk, gelatin etc.

LPG Working Principle of Lithium Iron Phosphate Spray Dryer

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.

Details of LPG Lithium battery Spray Dryer

LPG-5 Lab Rotary Atomizer Spray Dryer Price Technical Data

Evaporation

35Kg/h

Dia/Height

1.0M/2.2M

Operation temperature

Inlet 180

Outlet 90

Atomizer

Dia 50mm

Pneumatic driving

Max 30000r.p.m

Power

Drive: 0.75KW

Water consumption

0.1m3/h

Heater: 12-15KW

Type

Open circle

Feeder

Peristaltic pump

Air contact

Co-current

Heater

Electric heater

Collection

Cyclone

Atomizer

Centrifugal atomizer

Control

Inlet air adjustable by inverter

Overall size

1.68×1.5×2.1

Weight

About 500Kg

Packing

Poly-wood box

Power

3Ph, 220-440V, 50/60Hz


No.

Item

Model

Qty.

Material

Notes

Feeding system

1

Peristaltic pump

BT-100

1set

Sanitary

0.3Kw

2

Feeding pipe

1set

SUS304/SUS316L

Circulation system

1

Suction blower

9-19

1set

SUS304

0.75KW

2

Air valve

1set

SUS304

3

Hot air pipe

1set

SUS304

4

Air out pipe

1set

SUS304

5

Pipe fittings

1set

SUS304

Air system

1

Air filter

1set

SUS304

Initial and middle

2

Air heater

12Kw

1set

SUS304

3

Pipe fitting

1set

SUS304

4

Hot air pipe

1set

SUS304

Insulation

Main machine

1

Drying chamber

D1000 H2200

1set

SUS304/SUS316L

2

Air distributor

1set

SUS304

3

Air cover

1set

SUS304

4

Atomizer

LPG5/Dia 50mm

1set

SUS304/SUS316L

5

Light

100W

1set

6

Manhole

1set

SUS304/SUS316L

7

Insulation

Glass fiber

8

Hammer

SK40

2sets

Aluminum

9

Ladder

1set

SUS304

Powder collection system

1

Cyclone

XF170

1set

SUS304/SUS316L

2

Discharge valve

1set

SUS304/SUS316L

3

Product jar

1set

SUS304/SUS316L

4

Air pipe

Quick opening

1set

SUS304

Control system

1

Control box

1set

SUS304

2

PLC

SIEMENS

1set

3

Touch screen

SIEMENS

1set

4

Contactor

SIEMENS

1set

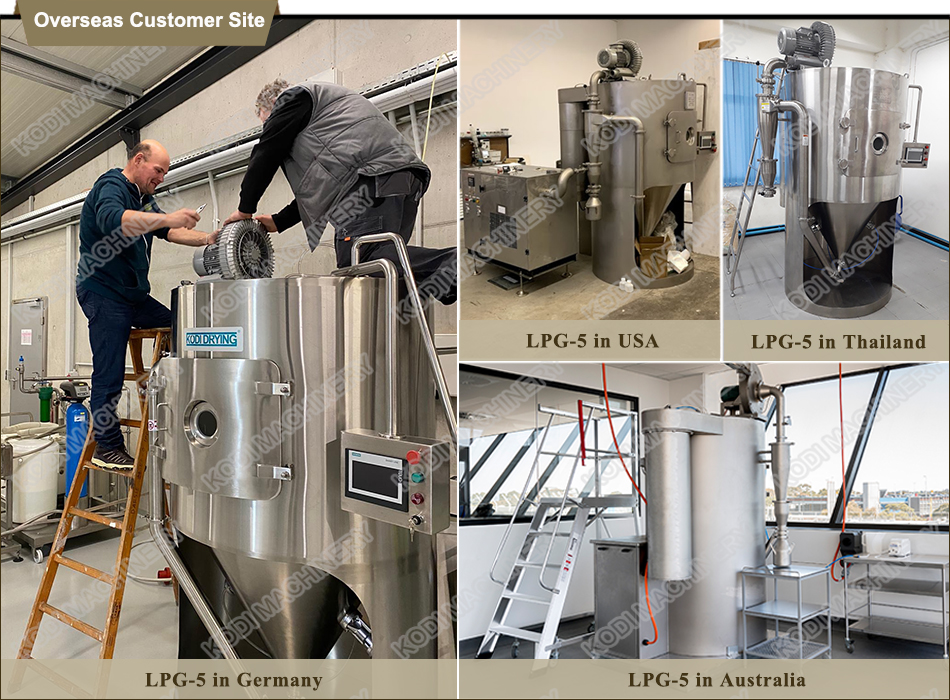

Successful Experience Overseas of KODI LPG Lithium battery Food Spray Dryer
